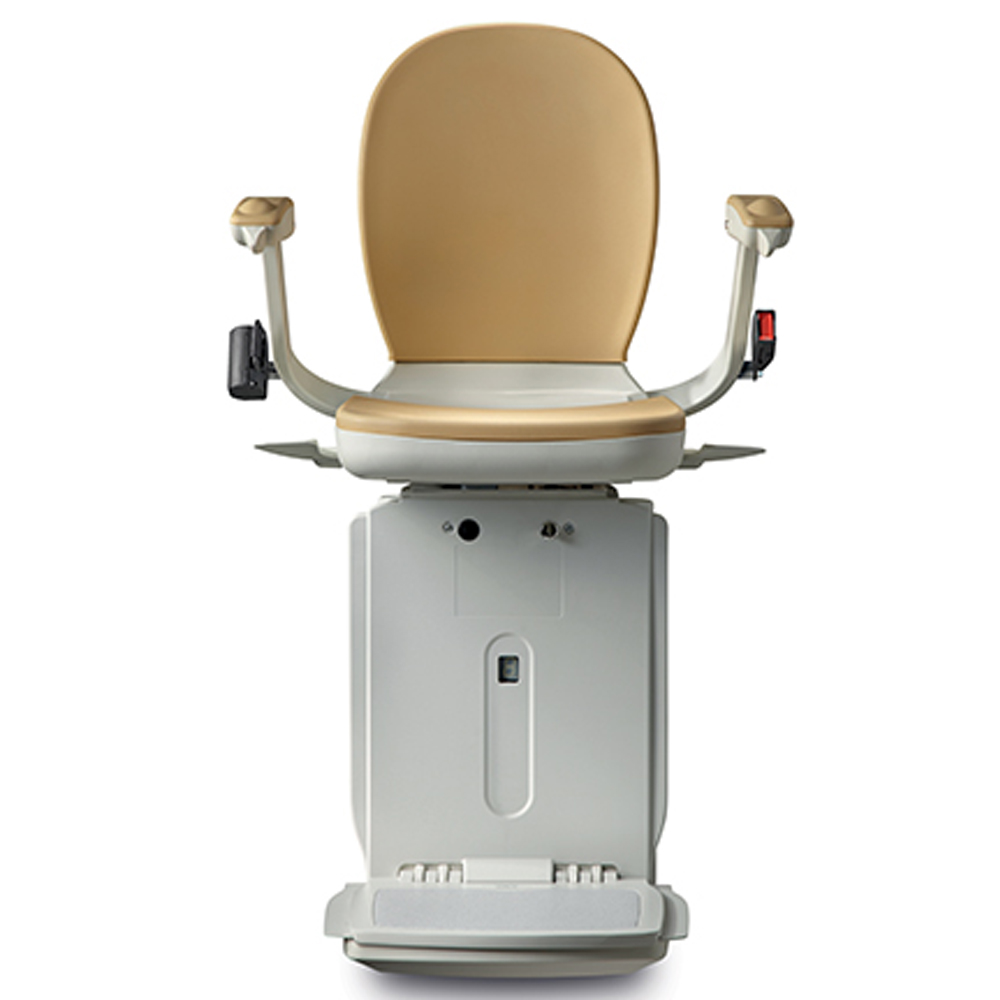

Brooks Straight/Slimline Stairlift
Please contact Easy Care Systems for a free onsite survey.
The supply and installation by Easy Care Systems will be subject to area restrictions.
The price quoted is just a guide price and a full quotation will be provided follow on from our site survey
The price quoted (£1550.00) is for standard Straight Stairlift supplied and installed, (Subject to a site survey and client assessment)
Brooks Straight/Slimline Stairlift

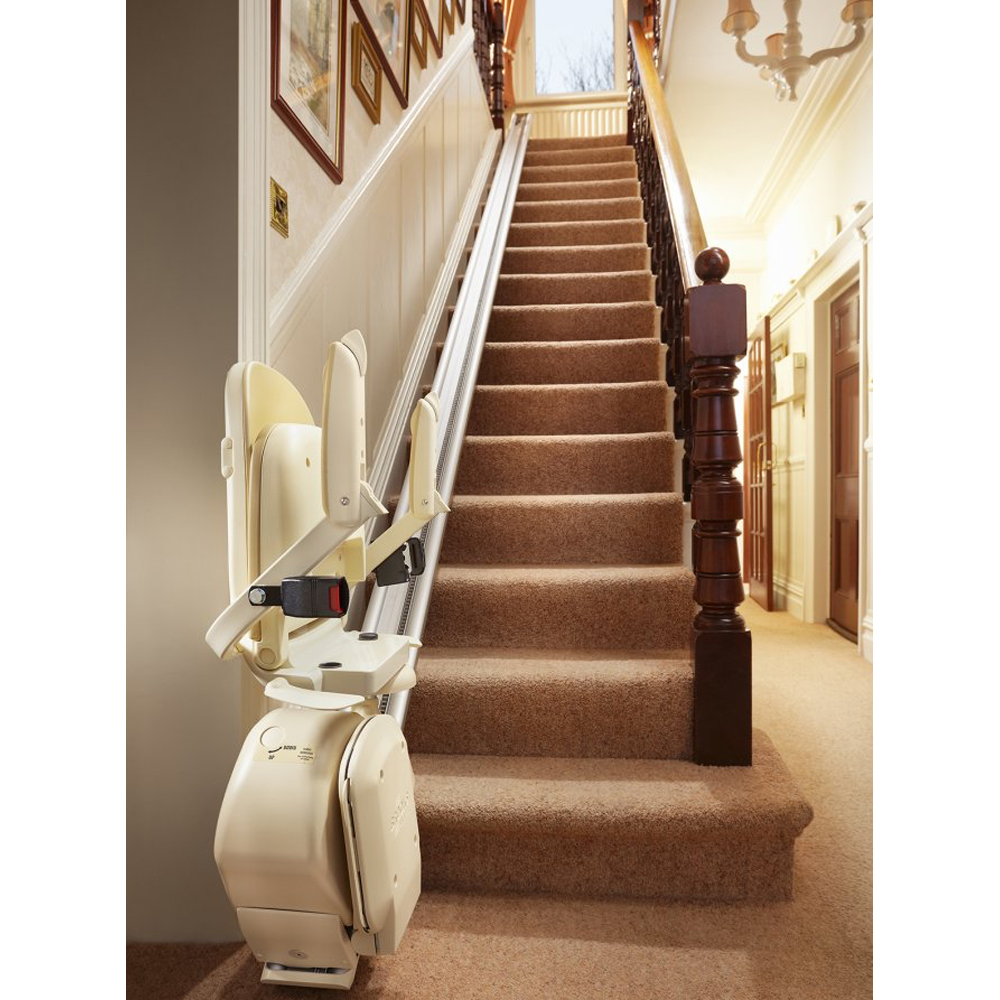

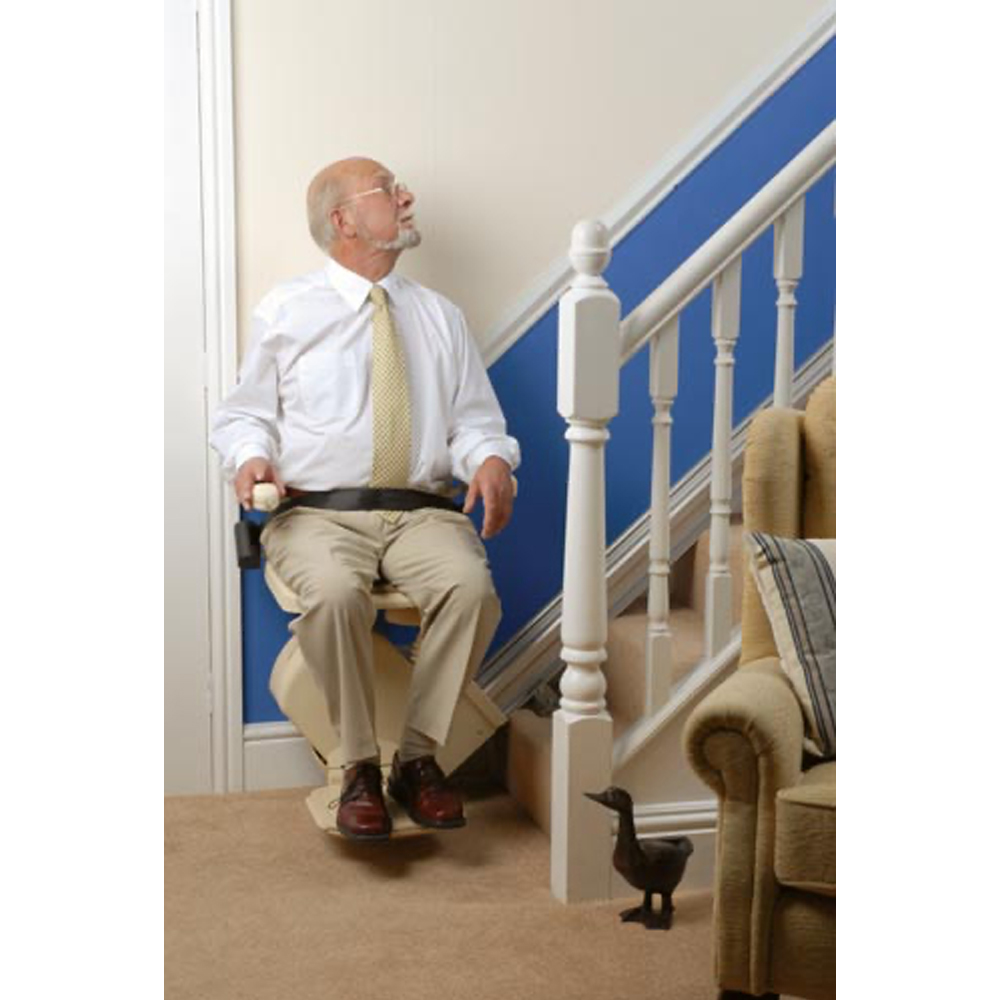

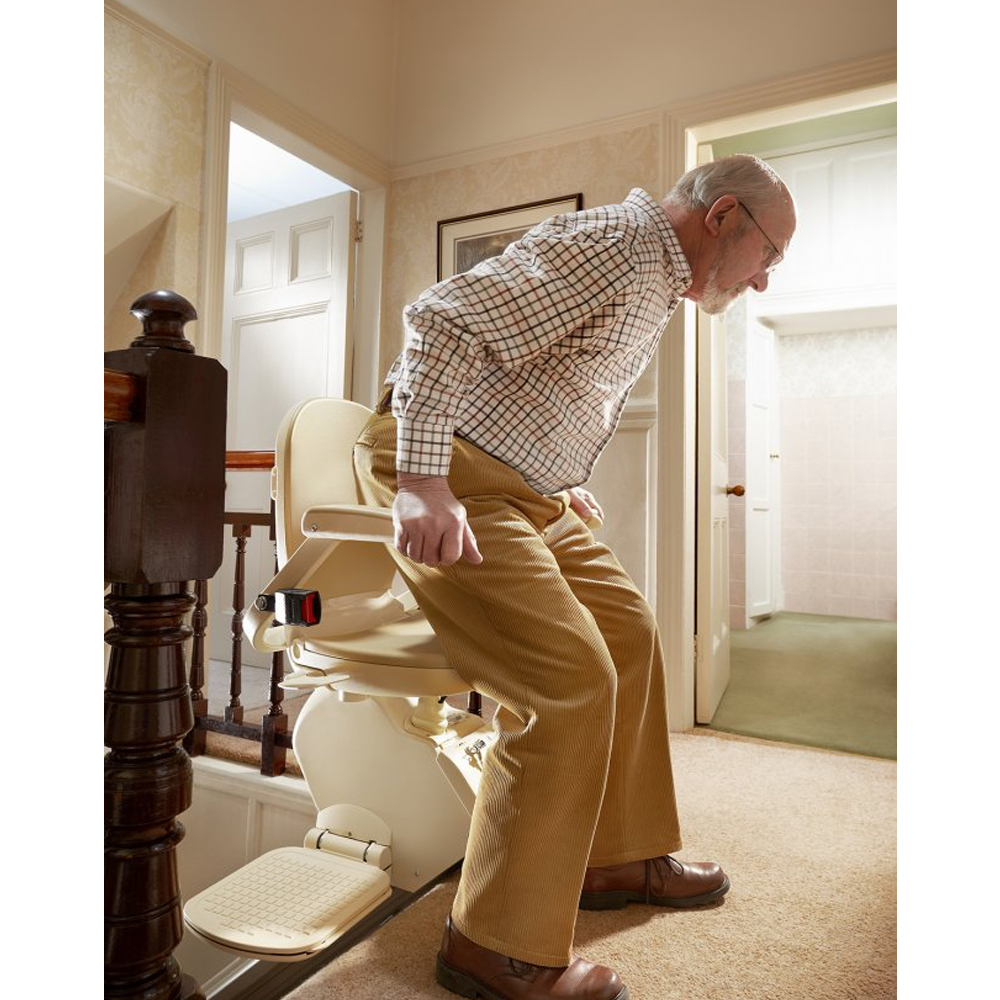

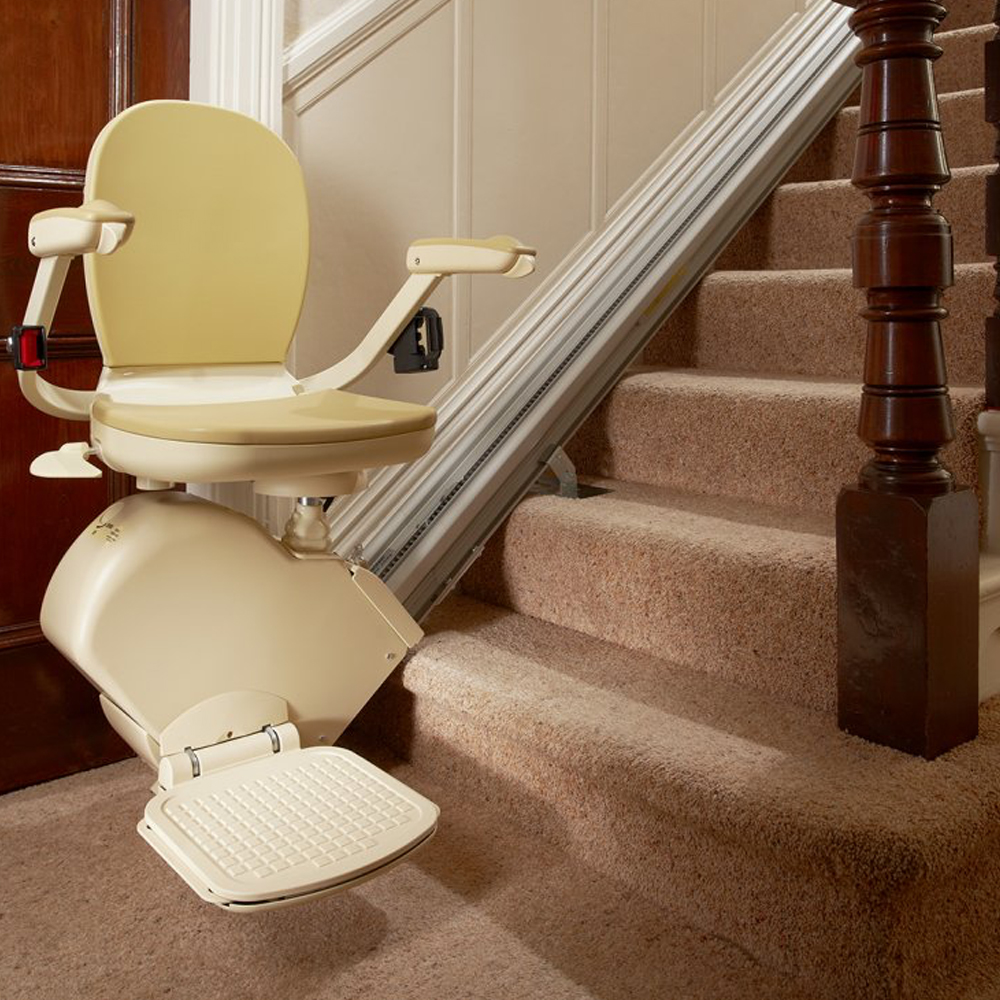

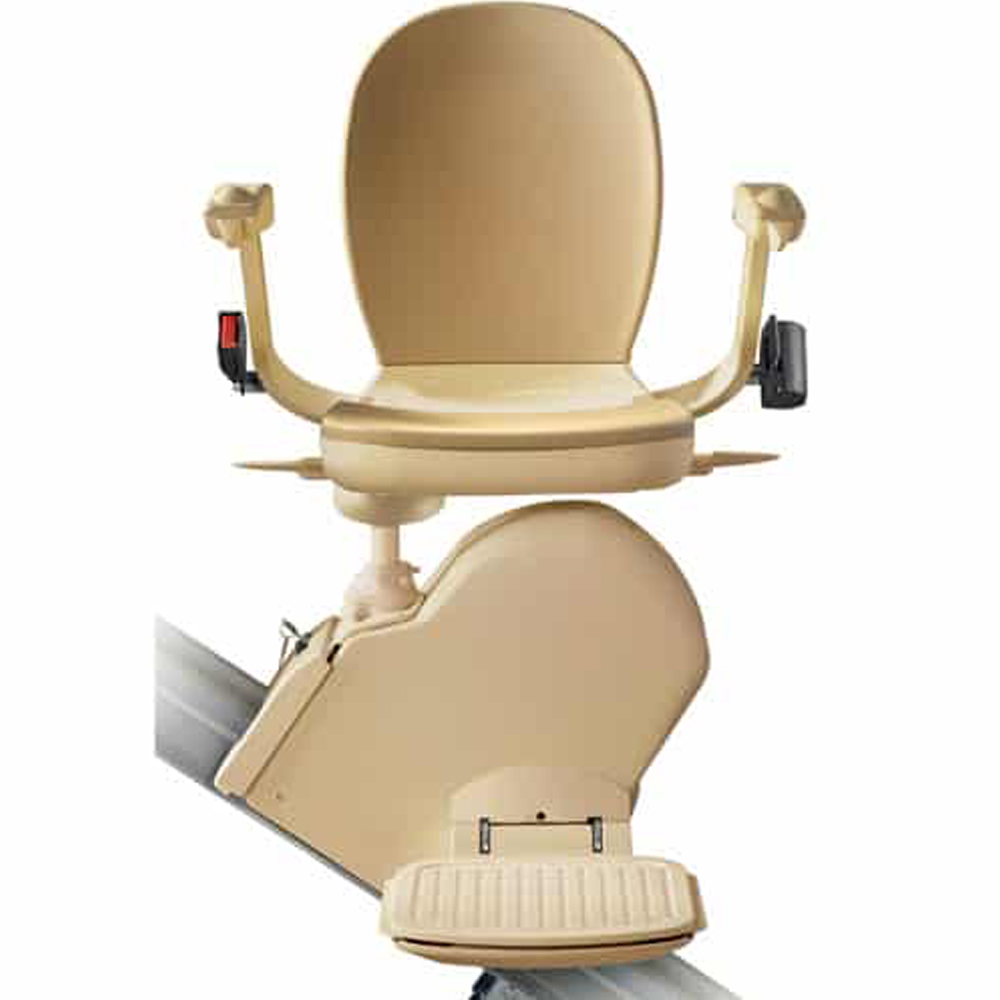

A stairlift is a piece of accessibility equipment, consisting of a chair that carries you safely up and down stairs, along a straight or curved rail that is secured to your stair treads.
Stairlifts prevent falls, eliminating your stairs as a barrier and allowing you to enjoy the full use of your home.
Blending seamlessly into your home, with a smooth start and stop mechanism, you can glide effortlessly up and down the stairs.
Safety and Convenience
- Folding foot rest
- Seat belt
- Diagnostic display
- Backup battery

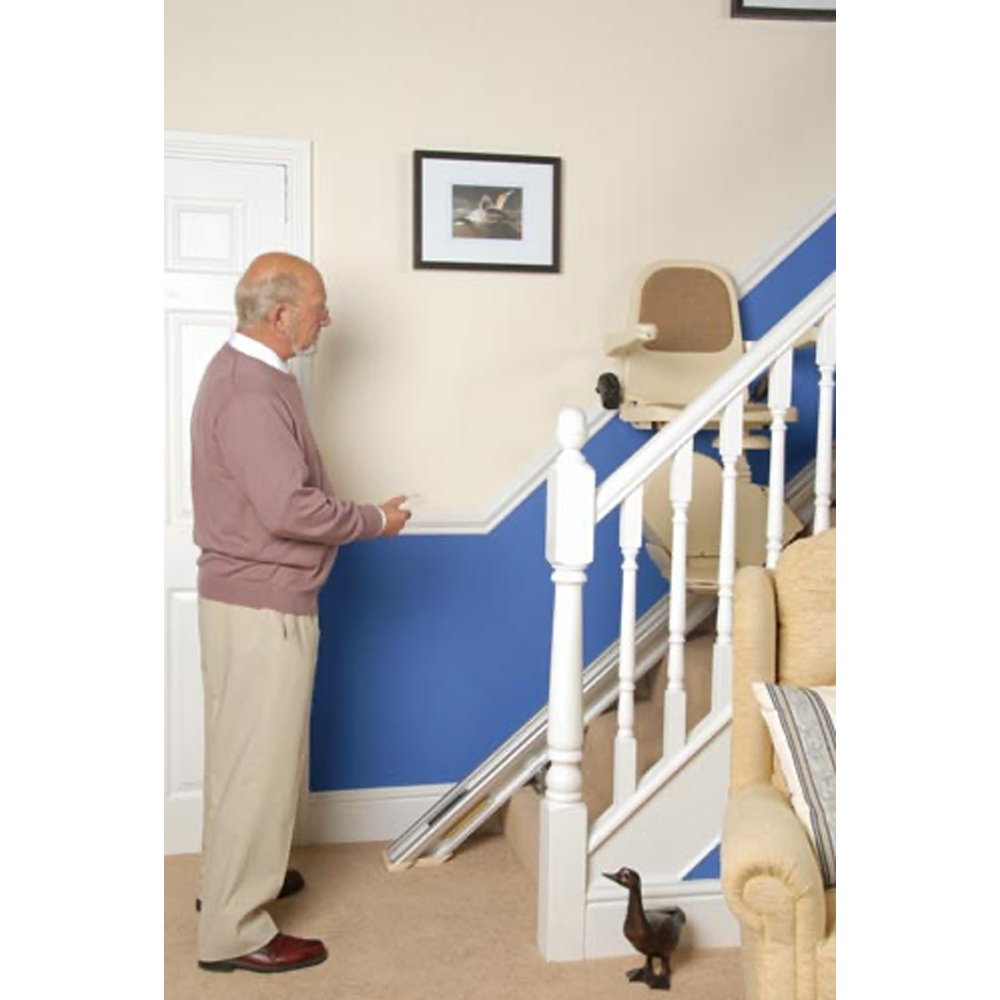

- Remote control
Straight Stairlift Features
- Fits quickly and easily to the stairs, not the wall
- Requires no structural changes to your home
- Affordable and reliable with low running costs

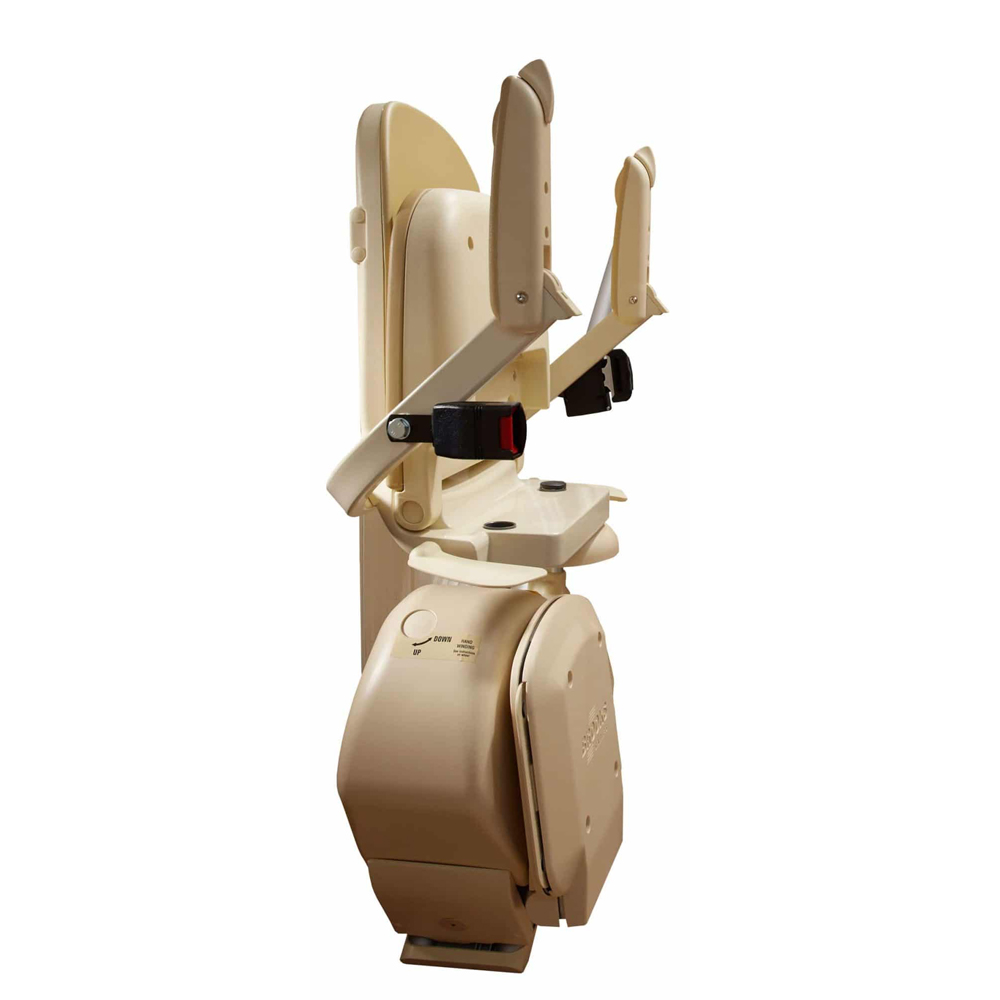

- Slimline and folds away conveniently when not in use
- Optional hinged rail designed to eliminate any obstruction or trip hazard
VAT exemption (UK only)
There are strict laws governing VAT (Value Added Tax) exemption to registered disabled people in the UK.
Please check with your local VAT office or follow the links from our ARE YOU ELIGIBLE FOR VAT EXEMPTION
NOTE - Specifications may change at the manufacturers discretion.
Any changes will be updated accordingly and no orders will be processed without prior notification.
All orders are subject to Easy Care Systems Ltd Terms and Conditions.
Assessments and site surveys subject to area restrictions.
Technical Specifications
Dimensions | mm | inch | |
---|---|---|---|
A | Floor to top of footrest | 95 | 3.75 |
B | Top of footrest to top of seat (Short) (Tall) | 445 (410) (505) | 17.5 (16.25) (19.75) |
C | Top of seat to top of arms | 250 | 9.75 |
D | Top of arms to top of seat back | 190 | 17.5 |
E | Width between armrests (Wide arm version) | 445 (495) | 17.5 (19.5) |
F | Overall width | 605 | 23.75 |
G | Overall height to floor | 980 | 38.5 |
H | Length of arms from seat back | 470 | 18.5 |
I | Length of seat base from seat back | 435 | 17 |
J | Length of footrest | 325 | 12.75 |
K | Width of footrest | 310 | 12.25 |
L | Front of footrest to stringer | 570 | 22.5 |
M | Back of seat to stringer | 13 | 0.5 |
N | Folded width | 310 | 12.25 |
O | Minimum width required to swivel at top | 670 | 26.25 |
P | Distance from front of rail to stringer (Wide arm version) | 215 (240) | 8.5 (9.5) |
Angles
Short seat post | 40-55° | |
Standard seat post | 29-55° | |
Tall seat post | 23-55° |
Specifications | |
---|---|
Motor output speed | No greater than 0.15 metres per second |
Method of drive | Rack and Pinion |
Carriage Power | 24v DC batteries |
Motor Power | 0.25KW |
Maximum capacity | 127kg |
Maximum capacity HD version | 159kg |
Power supply input range | 50-60Hz, 120-240V AC |
